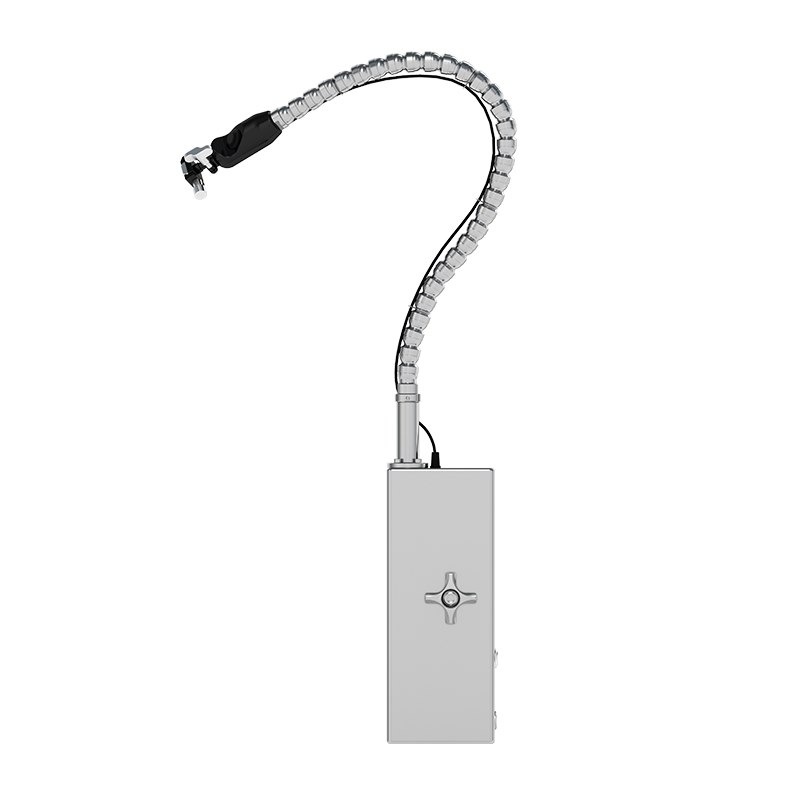

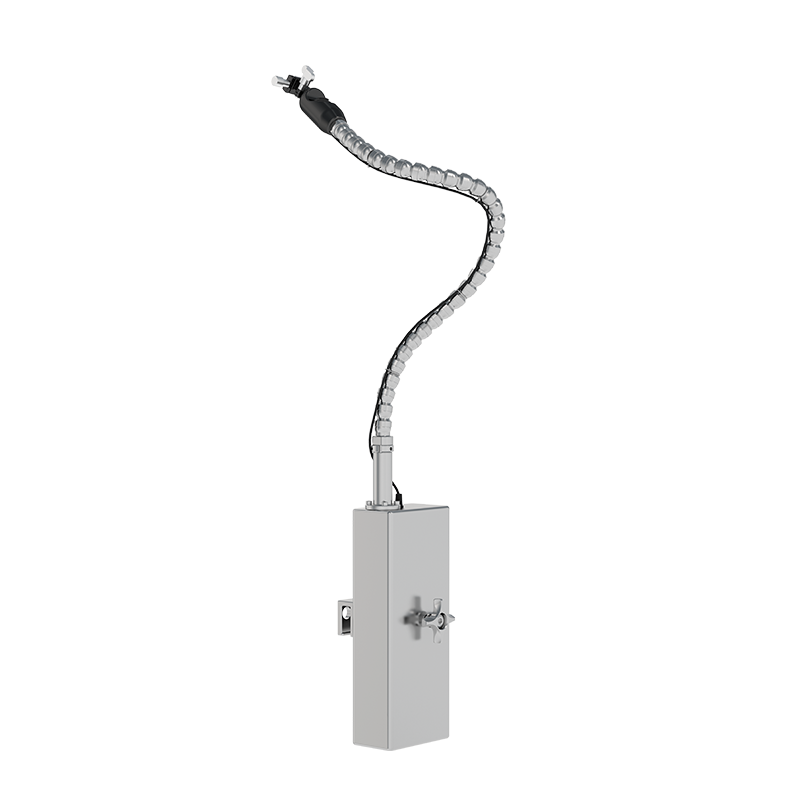

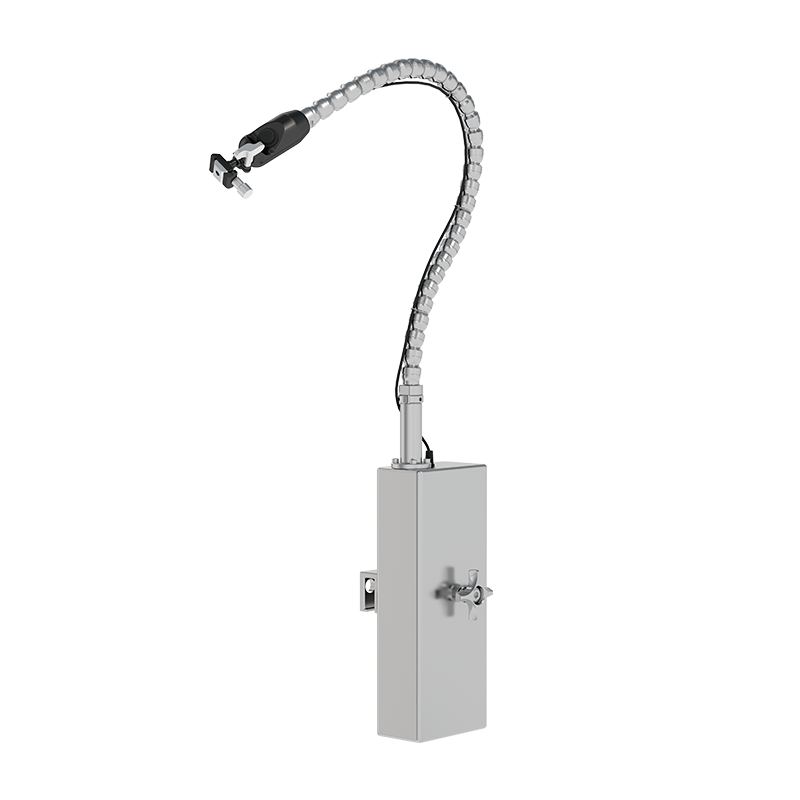

Product Introduction

Total length: 1000 mm.

Length of fixation bar: 700mm.

Diameter of fixation bar: 20 mm.

Total weight(Power adapter cable not included): 4.9 kg.

Can be operated with one hand

Mechanical fixation via clamping handle

Double switch, self-locking when power off, multiple protections

Small flexible joints for fine positioning.

Autoclavable 121*C,15-20 minutes.

Connectors available for endoscopes, trocars, and instruments.

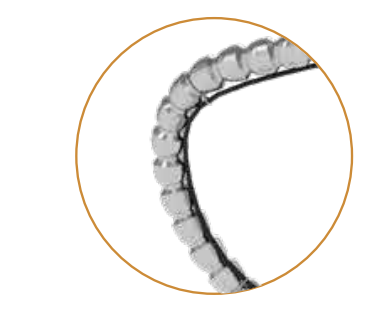

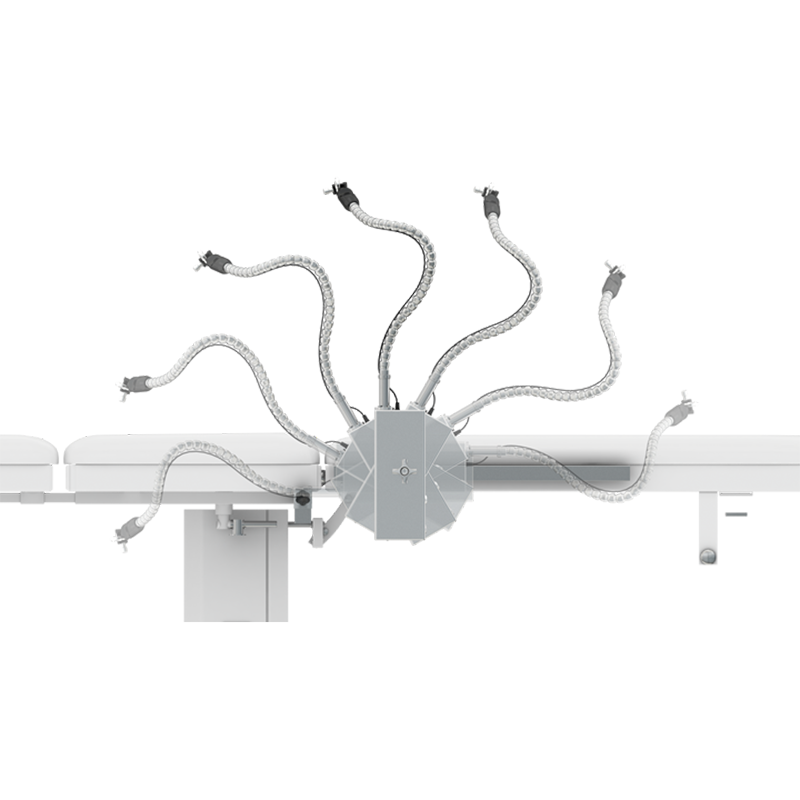

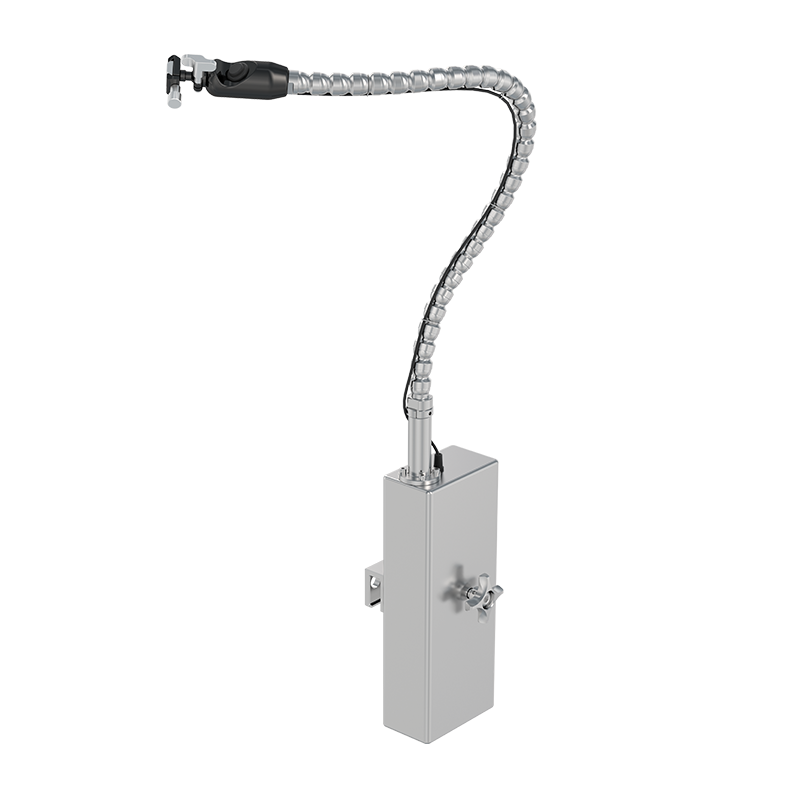

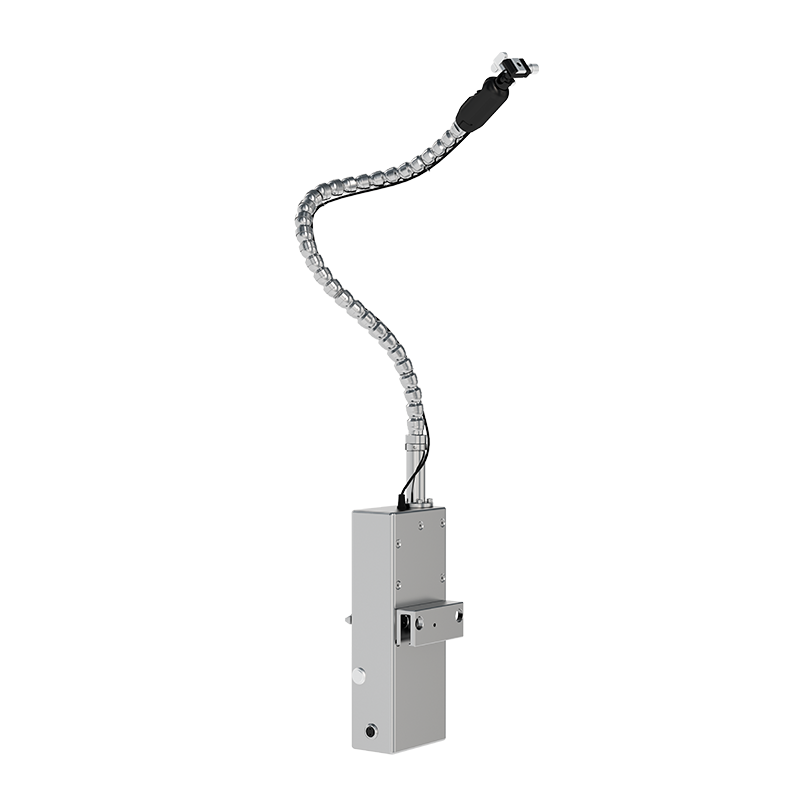

Advantages: The snake-shaped arm design is more flexible and can be positioned at any angle more accurately, reducing operator fatigue.

Length: 620+10mm

Length: 710+10mm

Arm

Note: The length of the arm can be customised

Button-System: one-handed manual button with an additional safety switch allows quick adjustment to the desired effect.

Machine: the device is small in size, only requires 220V power connection, and is easy to install.

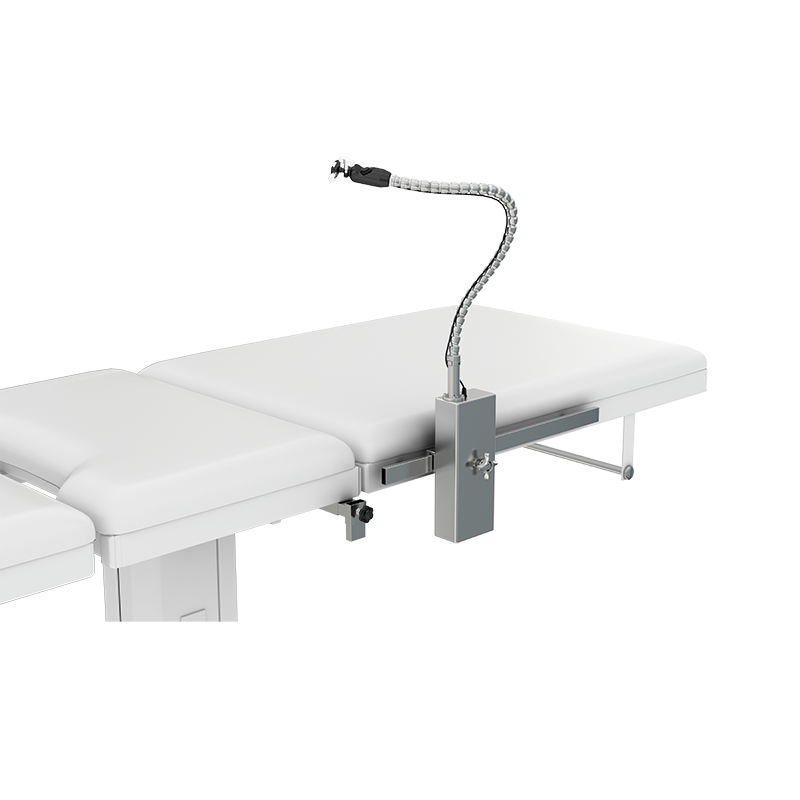

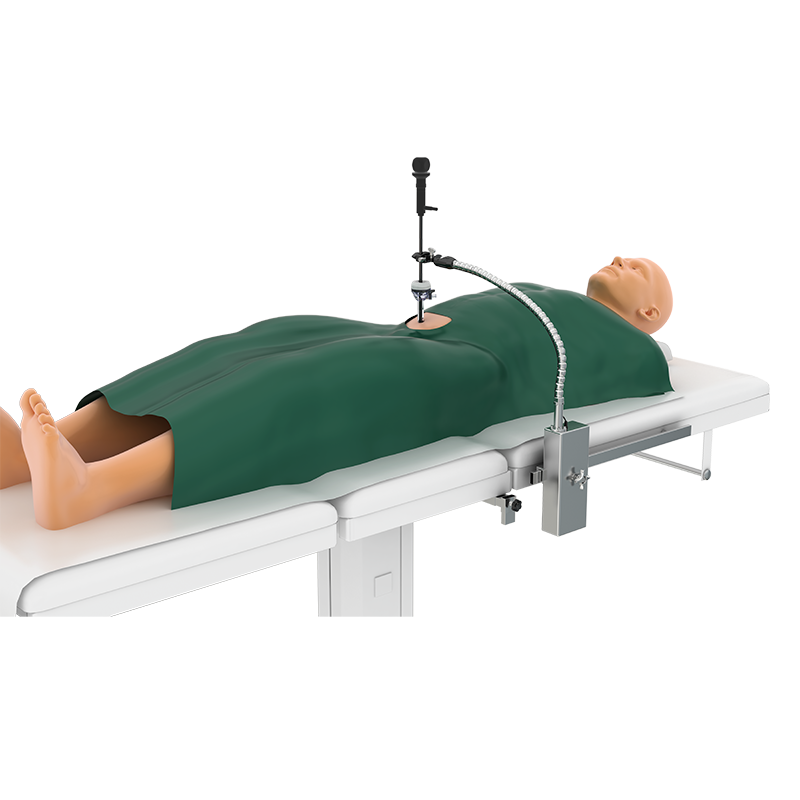

Accessories: easy to install, for clamping to the operating table, with release button for adjusting distance, lateral clamp for height and angle adjustment of the articulated stand.

Sterilisation bags: cover, 20*200, package of 1, double opening, for arm part, sterile, for single use.

Note: Only one type of clamping jaw in the set, and more types can be purchased as needed.

The accessories are not included in the set, and can be purchased as needed.

The power cord can be customised to match the power cord.

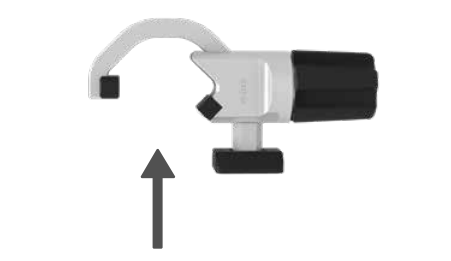

Usage instructions

1: Insert the clamped device into position① from the chuc-mouth.

2: Turn the black knob② at the tail clockwise to press the upper end.

Lock the clamped object and tighten it.

Size

ZF-JTKZ-Diameter

S 8~16mm
M 12~20mm
L 20~28mm

Advantages

Modular clamping jaw, non-damaging clamping of the lens body, avoiding lens shaking, precise focusing, easy replacement.

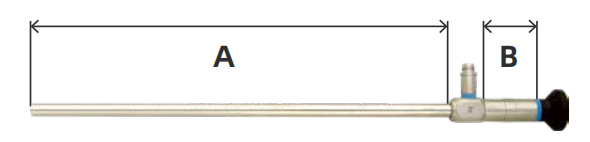

The A is not allowed to be clamped.

Note: Clamping is not allowed if the diameter of point B is less than 6mm.
