Brief Introduction:

The ligature is composed of an anorectal ligature and accessories. The anorectal band ligation device is composed of rubber ring sleeve(PC), band ligation rubber ring(natural rubber), handle(ABS), air valve(ABS)and other parts. The accessories consist of anal expander(PC)and anoscope(PC).

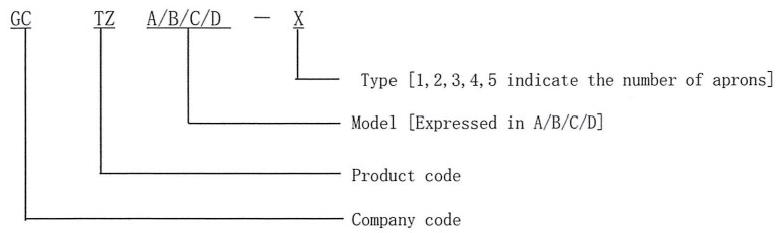

Nomenclature:

The name of the ligation device body is as follows:

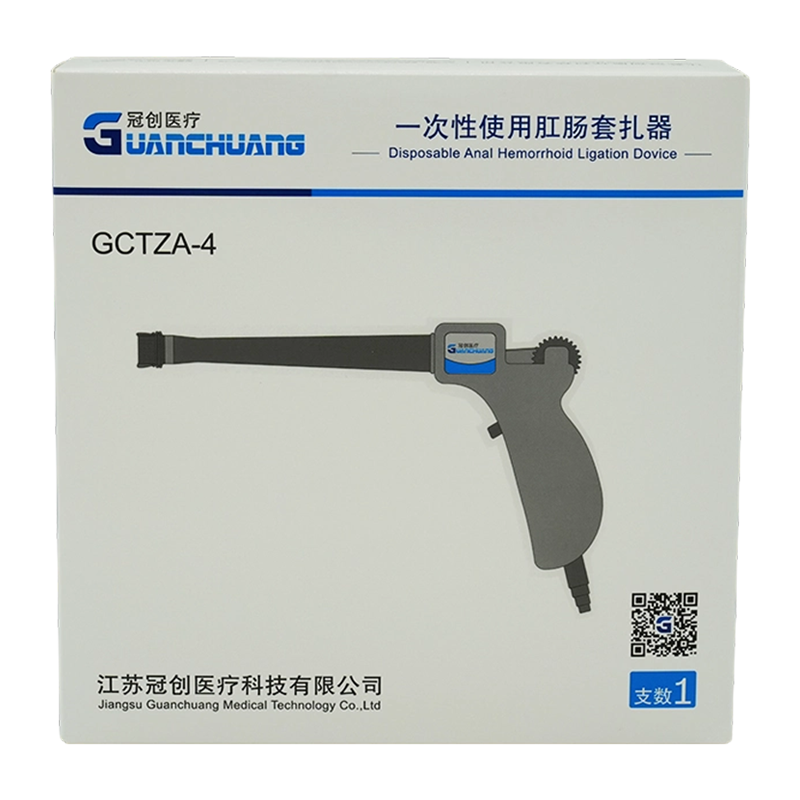

Such as GCTZA-4       Indicates a disposable anal hemorrhoid ligation device type A, the number of aprons is 4.

The type of bandage is shown in Figure 1-4

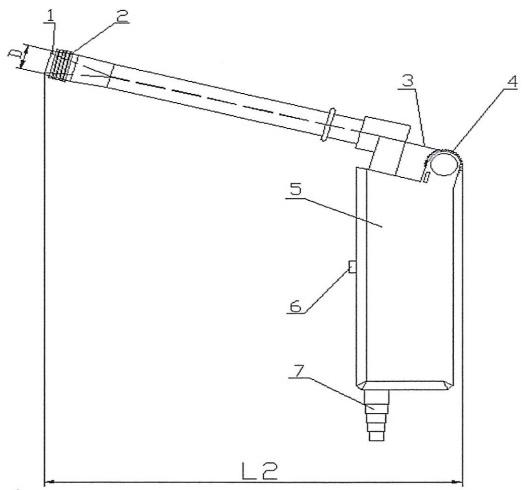

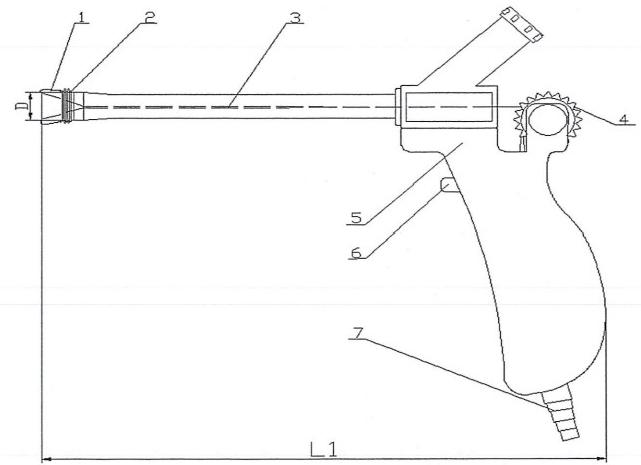

1. Rubber ring casing

2. Lamination rubber ring

3. Pull line

4. Dial

5. Handle

6. Air valve

7. Negative pressure trachea

Figure 1: Disposable anal hemorrhoids ligation device GCTZA type

1. Rubber ring casing

2. Lamination rubber ring

3. Pull line

4. Dial

5. Handle Negative pressure trachea

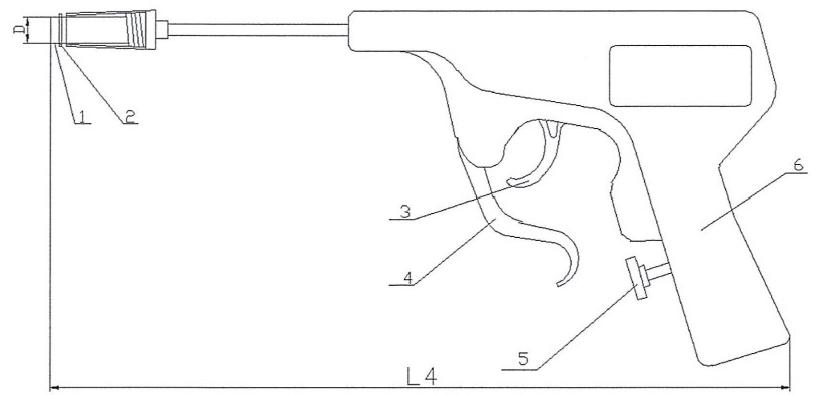

Figure 2 Disposable anal hemorrhoid ligation device GCTZB type

1. Rubber ring casing

2. Lamination rubber ring

3. Pull line

4. Dial

5. Handle Negative pressure trachea

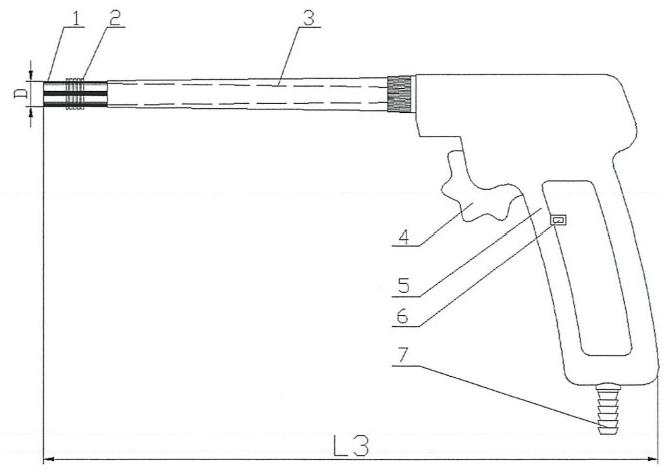

Figure 3 Disposable anal hemorrhoid ligation device GCTZC type

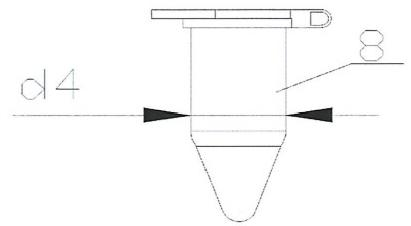

1. Rubber ring casing

2. Lamination rubber ring

3. Movable handle

4. Release handle

5. Air valve

6. Handle

7. Rubber ring seat

 8. Apron box

Figure 4 Disposable anal hemorrhoid ligation device GCTZD type

Figure 5 Lamination rubber ring

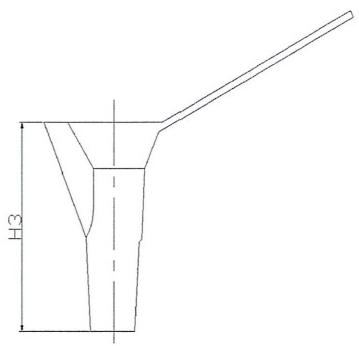

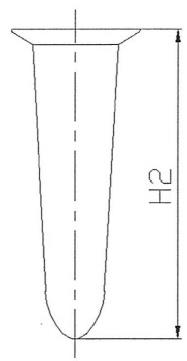

Bougie Anal Dilatation / Anoscope

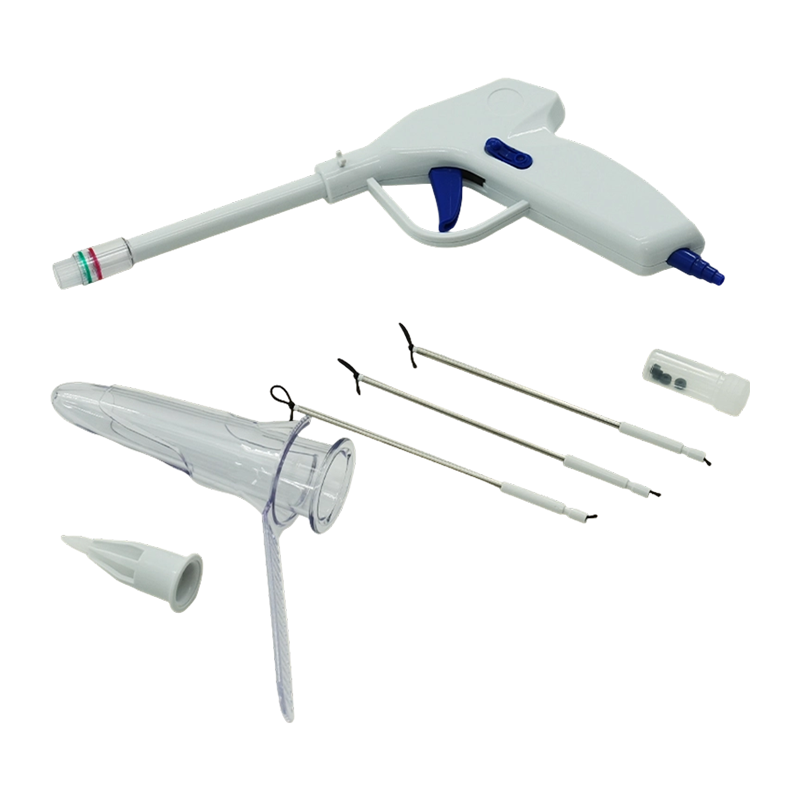

Figure 6 Disposable Anal Hemorrhoid Ligation Device Accessory

Product Model and Specification(s):

Table 1 The basic size of the ligation device  Unit: mm

Table 2 The basic size of the rubber band ligation Unit: mm

Table 3 The basic size of the Accessory Unit: mm

Intended Use:

The disposable anal hemorrhoids ligation device is suitable for banding treatment of hemorrhoids and mixed hemorrhoids or benign polyps in various periods.
