【Main structural components of the product】: The Electric Hospital Strtcher System consists of a support and expansion part, a lifting part, a translation part, a support part, a counterweight part, an electric control part, a shifting bed part, etc.

【Scope of application of the product】: Used for transporting and moving patients in medical institutions.

【Contraindications】: None

【Product Description】:  The Electric Hospital Strtcher System is issued through a multi-function remote control or software. After the control box receives the command, it drives the corresponding electric push rod to perform the action, and the patient is lifted and transferred to the operating platform or bed in a horizontal posture, vertically lifted, horizontally moved.

This product is only for use by personnel who have received relevant training. Before use, please refer to the relevant technical documents or instructions.

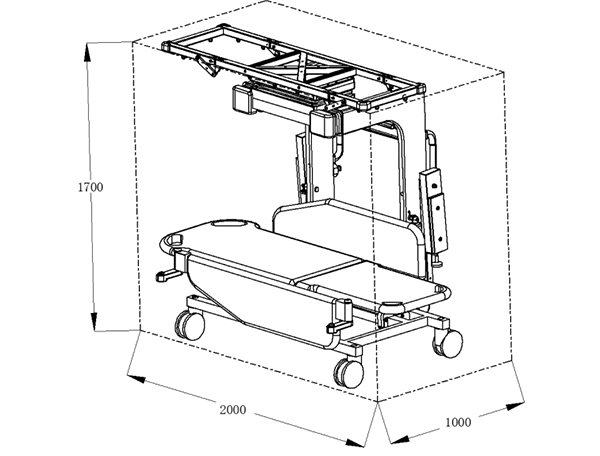

When moving this product, ensure that it is in a recycled state. The minimum passing dimensions required for this product are: height 1700mm, width 1000mm, and length 2000mm. Do not move the vehicle laterally when using electric auxiliary wheels for movement.

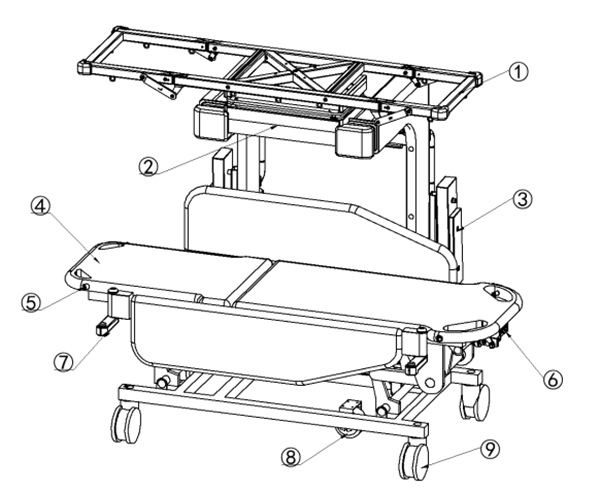

Display and Component Names

① Unfold Frame
② Lift platform
③ Weight block
④ Elevating bed surface
⑤ Auxiliary power button
⑥ Lift bed control button
⑦ Support rod
⑧ Power-assisted wheel
⑨ Wanxiang Wheel

⑩ Flat support plate
⑪ Grip
⑫ Emergency stop button
⑬ Auxiliary power button
⑭ Action controller
⑮ Lithium battery pack
⑯ Charging interface
⑰ Main switch
