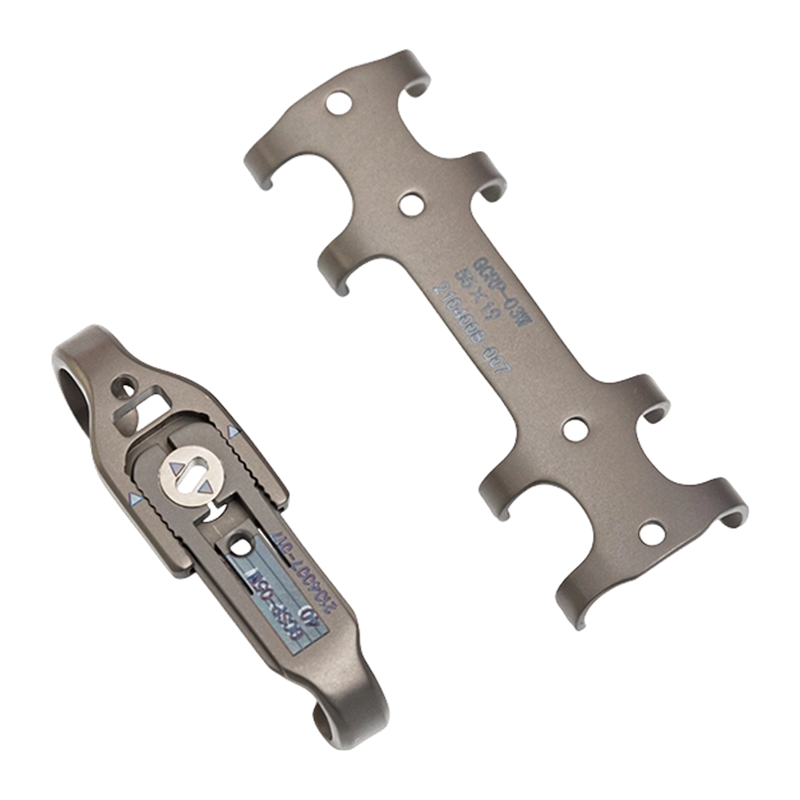

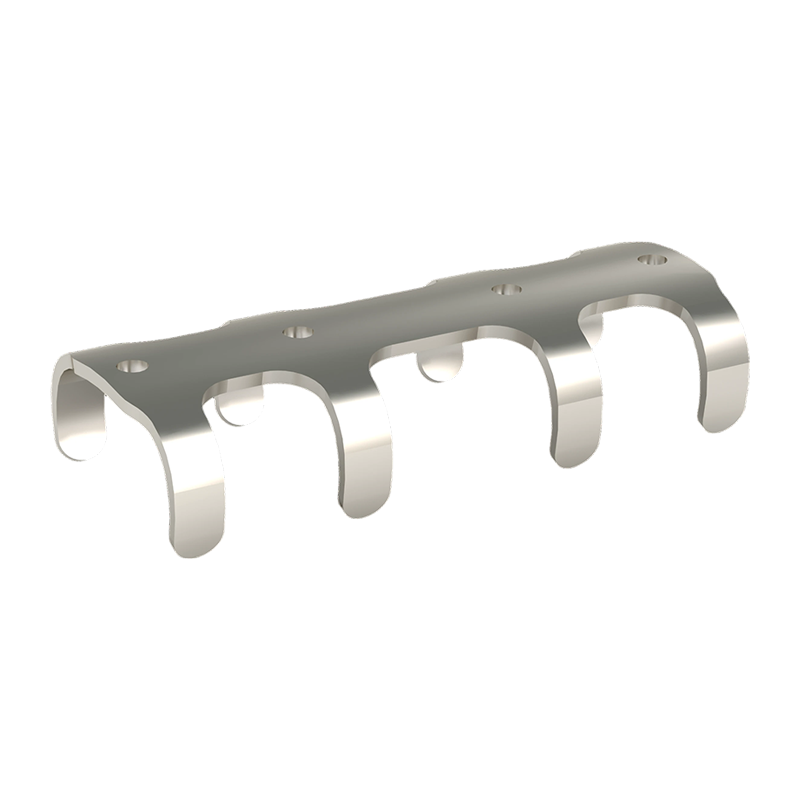

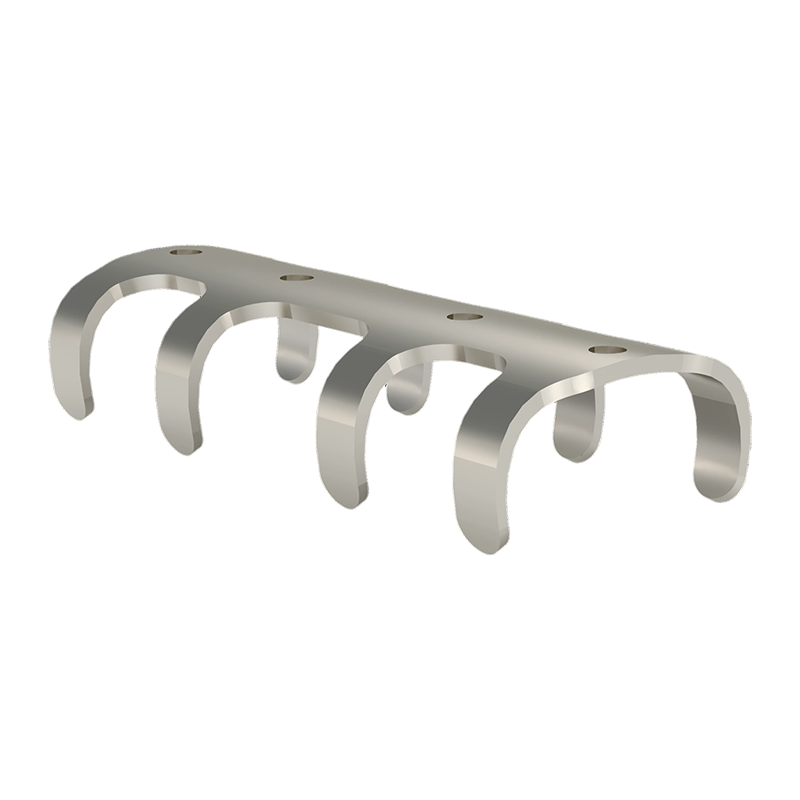

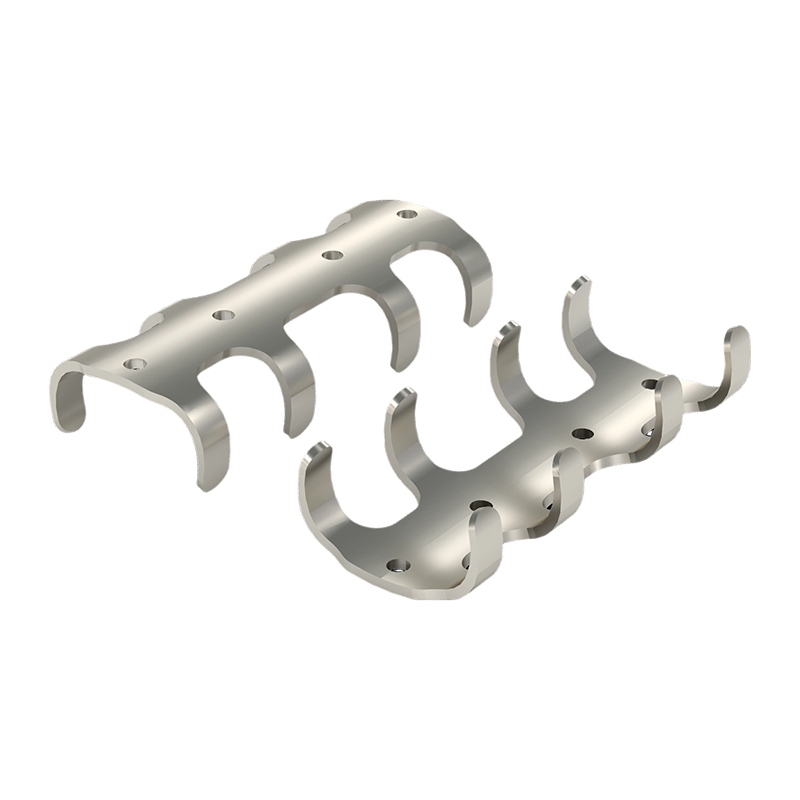

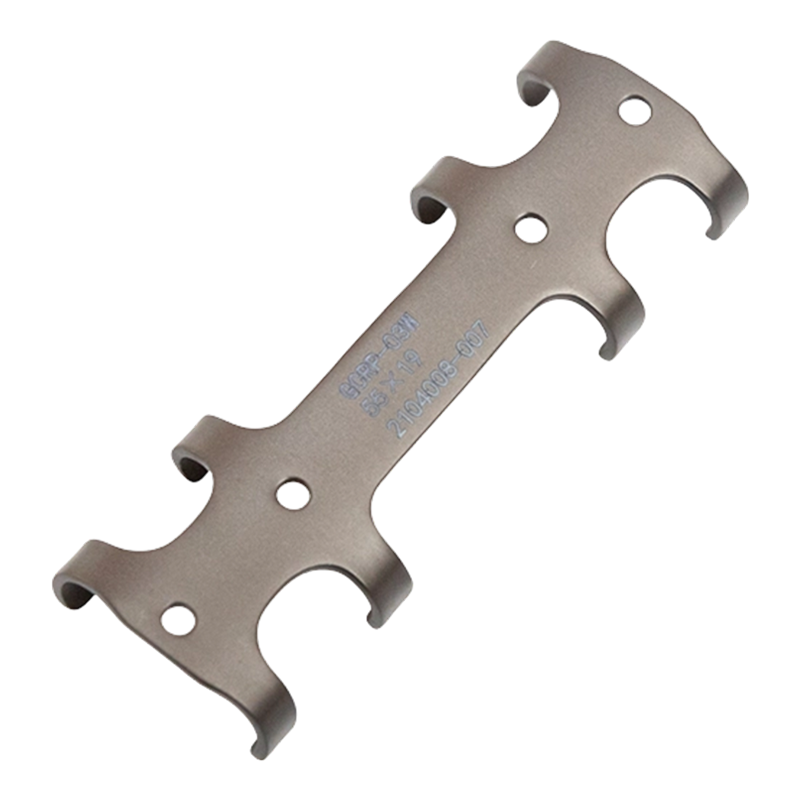

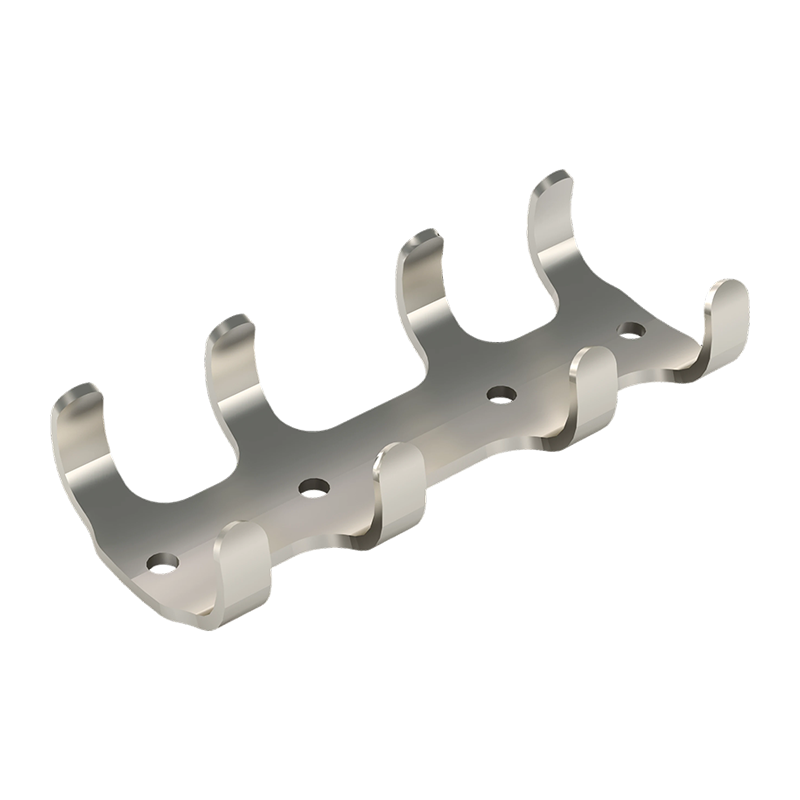

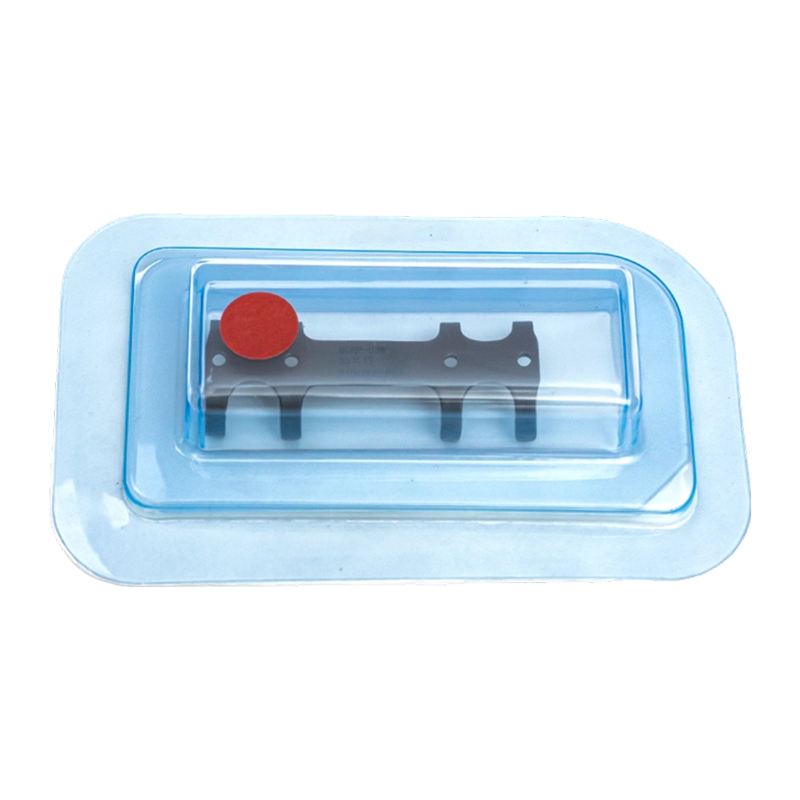

Rib Plate

Rib Plate

Minimally invasive implantation, with dedicated clips for each site, ensures easy operation.

The pure titanium plate is lightweight (only 2 grams per plate), biocompatible, iron-free, and virtually artifact-free on postoperative CT scans. Removal is not necessary. Flexible fixation ensures no compression of intercostal nerves.

Main Components

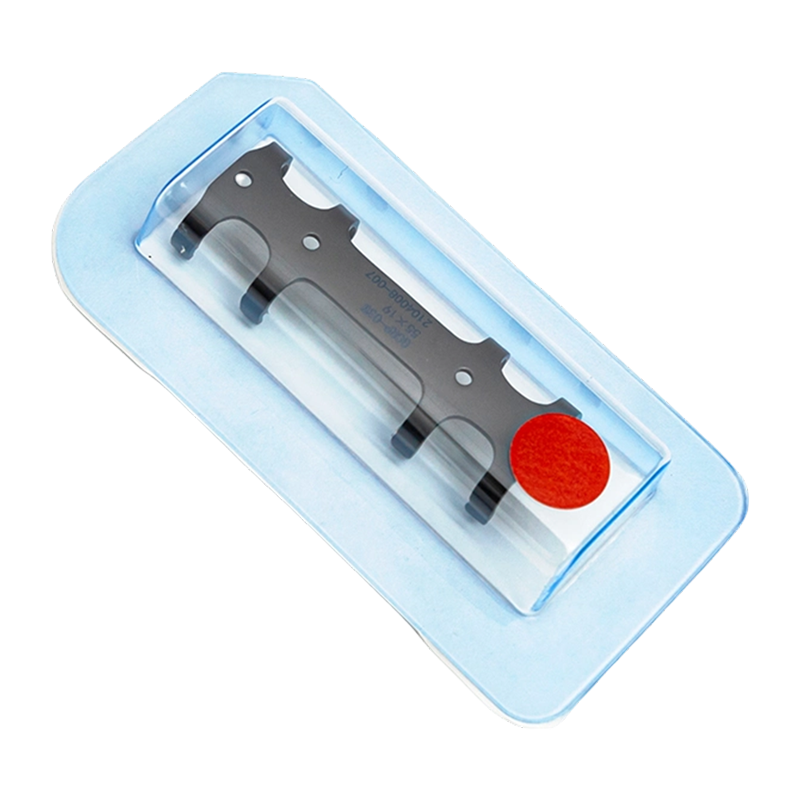

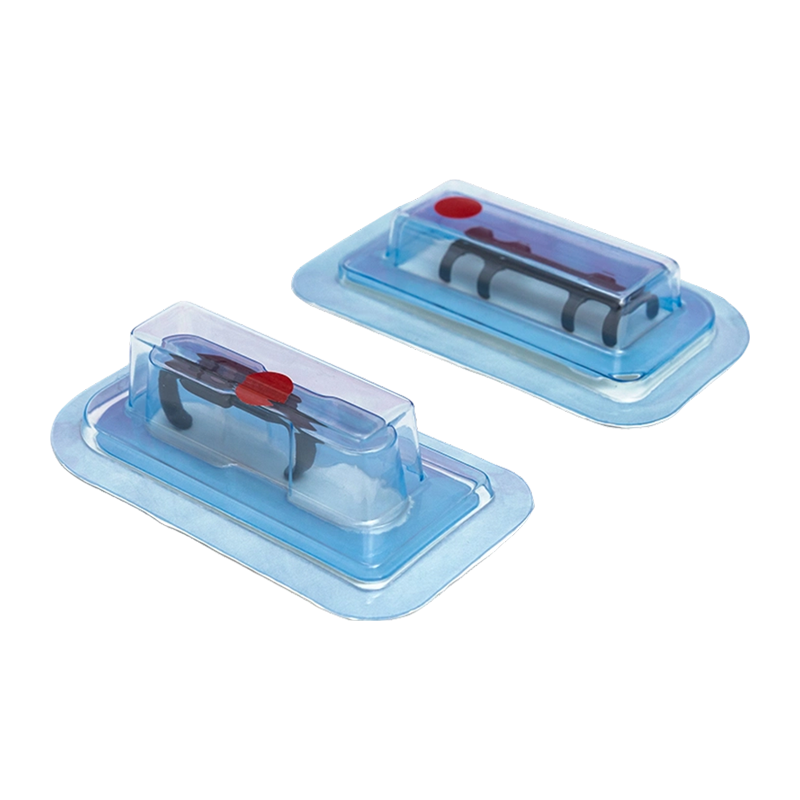

The rib plate is made of pure titanium (TA2G) that complies with the requirements of GB/T 13810-2017. Its chemical composition and microstructure must conform to those specified in GB/T 13810-2017. The surface finish is black-gray anodized. The plate is available in both non-sterile and sterilized delivery methods. Sterile products are irradiated and have a five-year shelf life.

Scope of Application
The rib plate is indicated for internal fixation of rib fractures.

  • Rib Plate
  • Rib Plate
  • Rib Plate
  • Rib Plate
  • Rib Plate
  • Rib Plate
  • Rib Plate
  • Rib Plate
  • Rib Plate
PREV：Sternal Plate
NEXT：No next article

Minimally invasive implantation with specialized clamp fixation for various parts, easy to operate.

Pure titanium material is light (only grams per plecej)with good biocompatibility and iron ions. Postoperative CT shows almost no artifacts, and there is no need to remove it after surgery. Flexible fixation without compressing the intercostal nerve.

Application

Rib plate is mainly suitable for internal fixation of rib fractures

Technical Parameter

Rib Plate Model Specification Table  Unit: mm

Type

Specification (L × W)

Type

Specification (L × W)

GCRP-01/02/03W

30×11

GCRP-01/02/03W

30×13

GCRP-01/02/03W

30×15

GCRP-01/02/03W

30×17

GCRP-01/02/03W

30×19

GCRP-01/02/03W

35×11

GCRP-01/02/03W

35×13

GCRP-01/02/03W

35×15

GCRP-01/02/03W

35×17

GCRP-01/02/03W

35×19

GCRP-02/03W

40×11

GCRP-02/03W

40×13

GCRP-02/03W

40×15

GCRP-02/03W

40×17

GCRP-02/03W

40×19

GCRP-02/03W

45×11

GCRP-02/03W

45×13

GCRP-02/03W

45×15

GCRP-02/03W

45×17

GCRP-02/03W

45×19

GCRP-02/03W

50×11

GCRP-02/03W

50×13

GCRP-02/03W

50×15

GCRP-02/03W

50×17

GCRP-02/03W

50×19

GCRP-02/03W

55×11

GCRP-02/03W

55×13

GCRP-02/03W

55×15

GCRP-02/03W

55×17

GCRP-02/03w

55×19

Note: Please adhere to the actual product.
